Indicating Type Snap Gauge

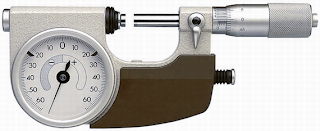

Indicating Type Snap Gauge Points : Indicating Type Snap Gauge, Definition This gauge is a tool that correctly measures shaft diameters with bearing journals within one ten-thousandth of an inch. One benefit of the snap gauge is that it is a dial indicating device that can be read directly. Also, a precise reading on the dial indicator does not depend on a logic of feel like whilst using an outside micrometer. Setting the snap gauge requires the use of plug standards before start measurements. These standards match to the exact inside diameter of most ball bearings that you will find in electric motors. Any deviation plus or minus of the surface being measured is eagerly indicated while the snap gauge is correctly set and used. The readings obtain are compared to acceptable minimum and maximum measurements of the size and kind of bearing installed. A snap gauge assembly is releasable mount on a regular amplifying and indicating mechanism which provides a graduated indication of a measurement of a work-piece to which the assembly is functional. The assembly includes a fixed jaw and a movable jaw, equally of which may be also usually flat a parallel or include rolls for contacting spline and gear teeth or other serration.
