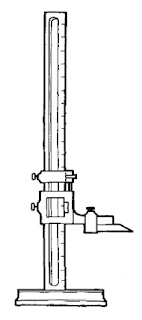

Vernier Height Gauge

Vernier Height Gauge Points : Vernier Height Gauge, briefly describe the uses of Vernier Height Gauge Vernier Height gauge is excellent accuracy tool use in tool inspection section on outline and jig with fixture effort to calculate and mark off distance precisely. Its instruments are existing in a selection of sizes from 300 to 700mm and it can be precisely set any height to inside one-thousandth of an Inch or 0.02mm. Mostly, this gauge is vernier caliper by a hardened, ground jaw and is for all time use by a surface plate or an accurate flat surface. The sliding jaw assembly can be raised or lowered to any place down the beam. Fine tuning is ready by way of a good amendment screw or knob. It’s examine in the equal manner like vernier caliper. Vernier height gauge is mainly suitable to precise layout work and might be use for this reason if a scriber is rise on the moveable jaw. Scriber height can be set also by means of vernier scale or by locale the scriber to a gauge block construct up. Depth gauge accessory may be fastened to variable jaw, permit the size of height disparity which may be not easy to calculate by other way. A different essential use for the vernier height gauge is in inspection work. Dial indicator might be fastened to changeable jaw of the height gauge and distance among holes or surface preserve be check to in an precision of 0.02mm on vernier scale.
