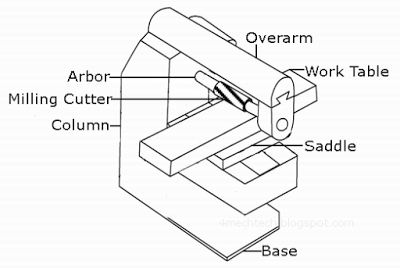

Construction of Milling Machine

Construction of Milling Machine Points : construction of milling machine A milling machine (also see synonyms below) is a machine tool used to machine solid materials. Milling machines are often classed in two basic forms, horizontal and vertical, which refer to the orientation of the main spindle. Both types range in size from small, bench-mounted devices to room-sized machines. Unlike a drill press, which holds the work piece stationary as the drill moves axially to penetrate the material, milling machines also move the work piece radically against the rotating milling cutter, which cuts on its sides as well as its tip? Work piece and cutter movement are precisely controlled to less than 0.001 in (0,025 mm), usually by means of precision ground slides and lead screws or analogous technology. Milling machines may be manually operated, mechanically automated, or digitally automated via computer numerical control (CNC).

Milling machines can perform a vast number of operations, from simple (e.g., slot and keyway cutting, planning, drilling) to complex (e.g., contouring, die sinking). Cutting fluid is often pumped to the cutting site to cool and lubricate the cut and to wash away the resulting swarf.

Milling is the process of machining flat, curved, or irregular surfaces by feeding the work piece against a rotating cutter containing a number of cutting edges. The usual mill consists basically of a motor driven spindle which mounts and revolves the milling cutter, and a reciprocating adjustable worktable, which mounts and feeds the work piece.

Milling machines are basically classified as vertical or horizontal. These machines are also classified as knee- type, ram-type, manufacturing or bed type, and planer-type. Most milling machines have self-contained electric drive motors, coolant systems, variable spindle speeds, and power-operated table feeds.
